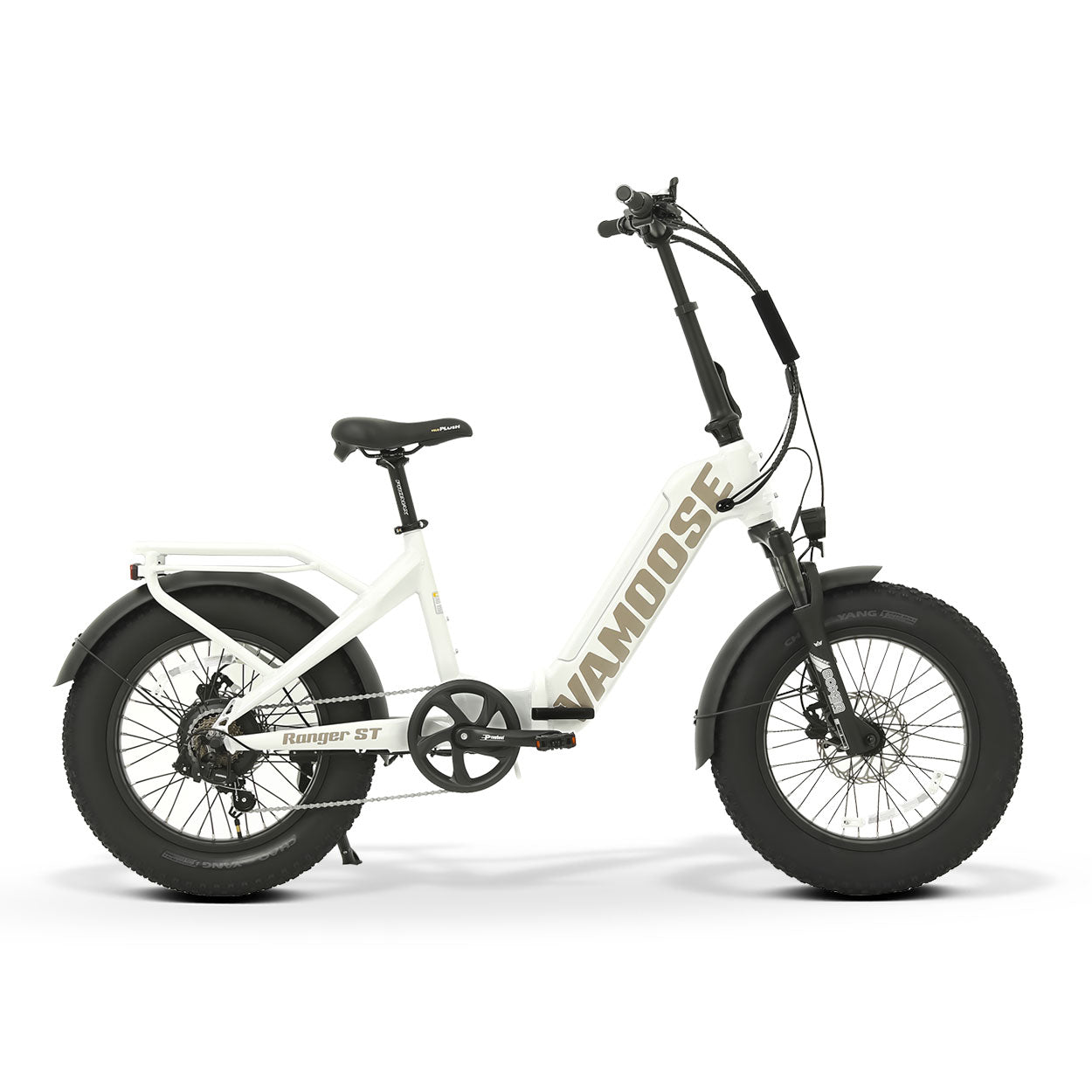

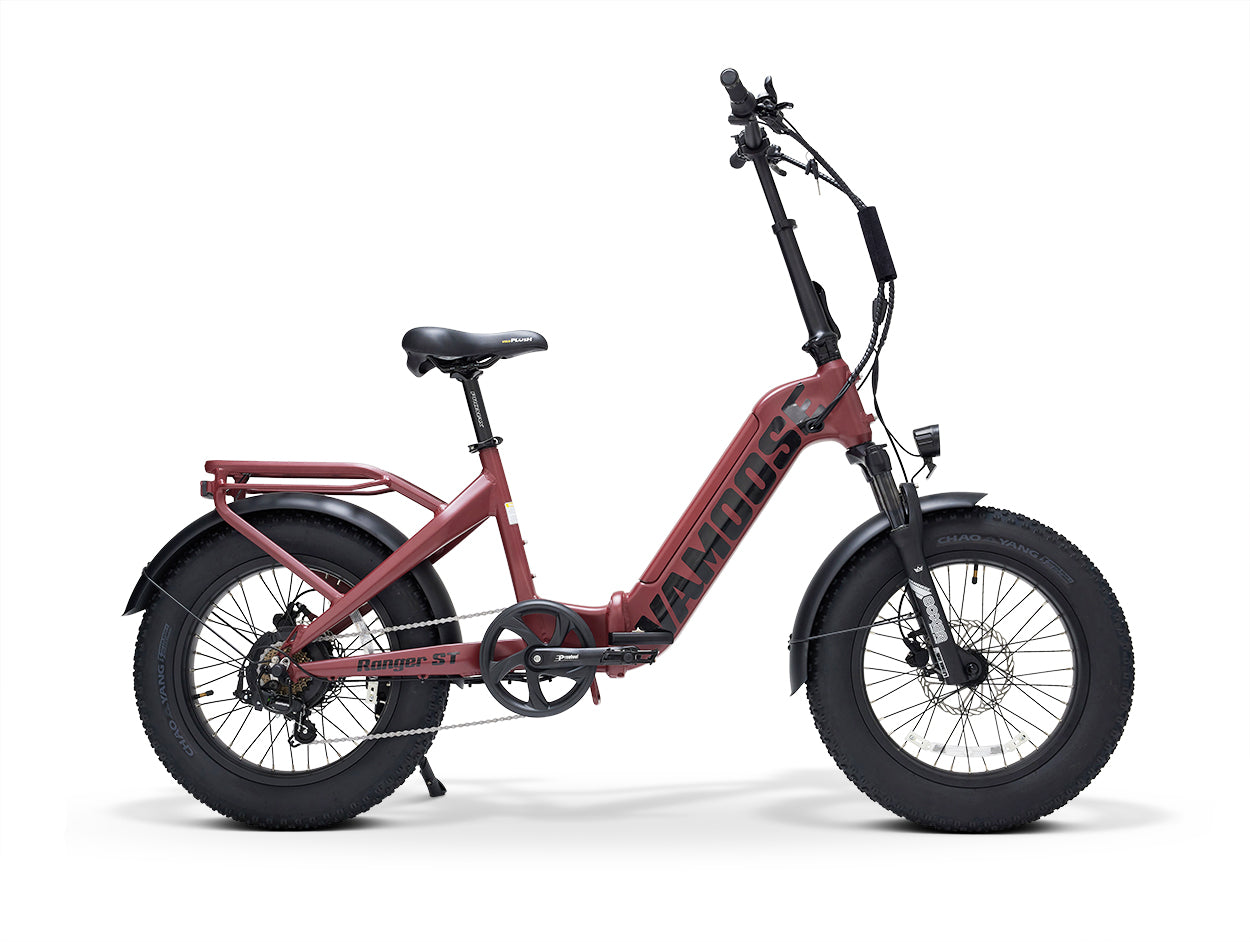

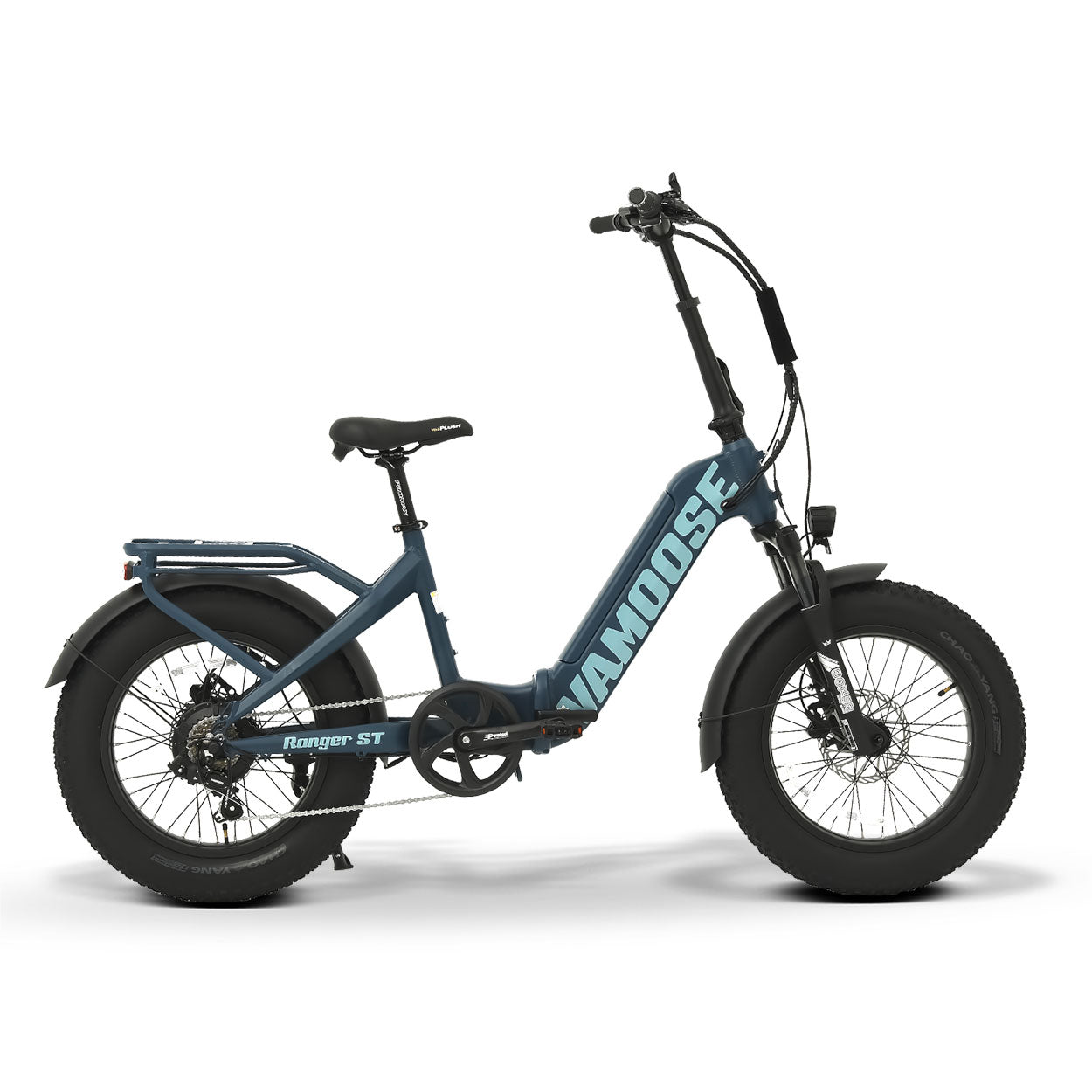

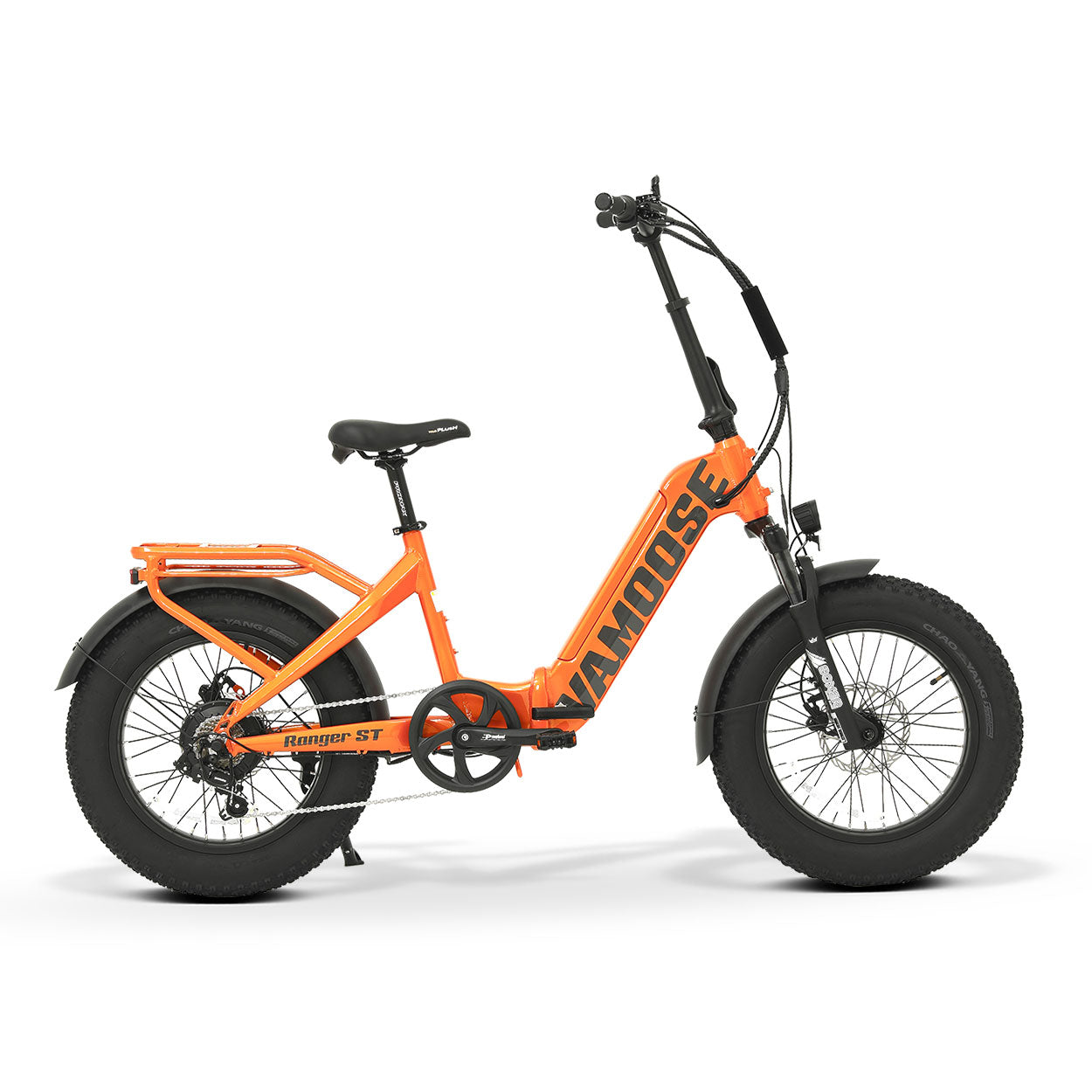

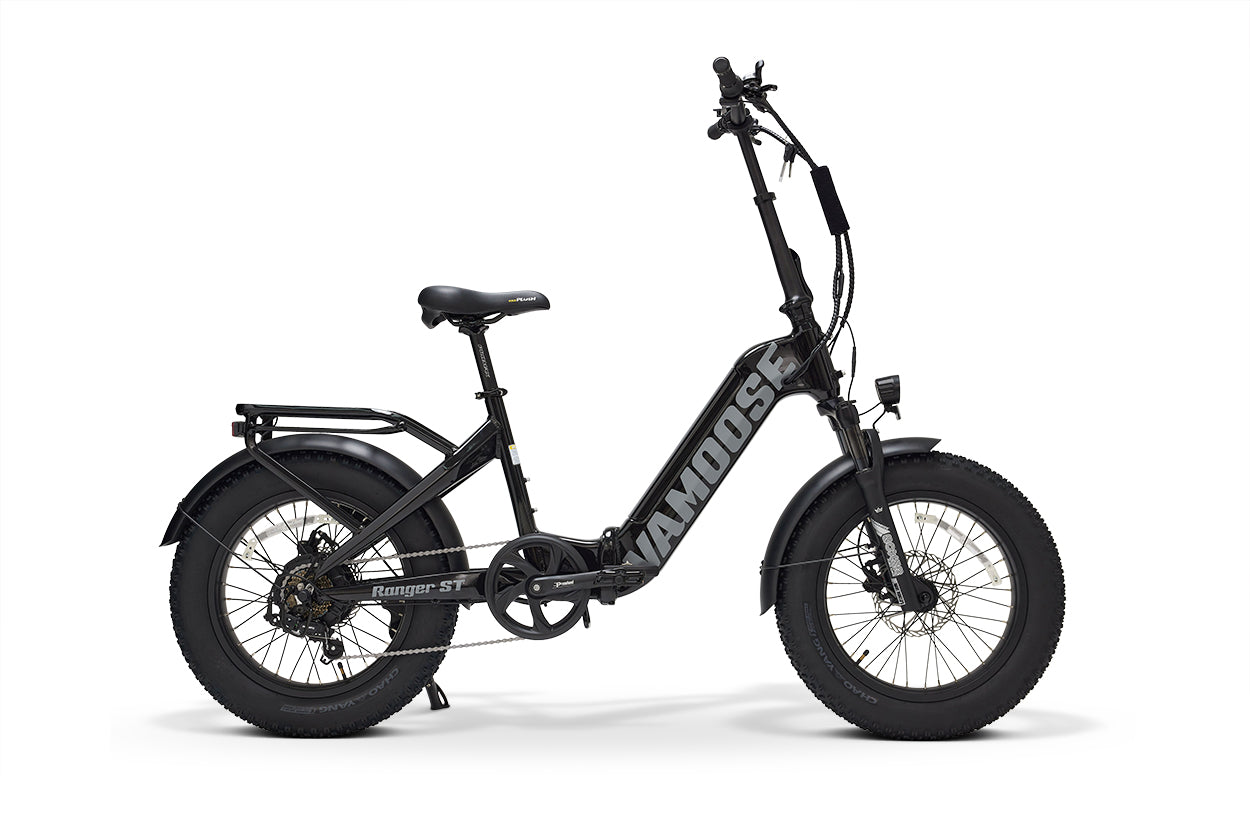

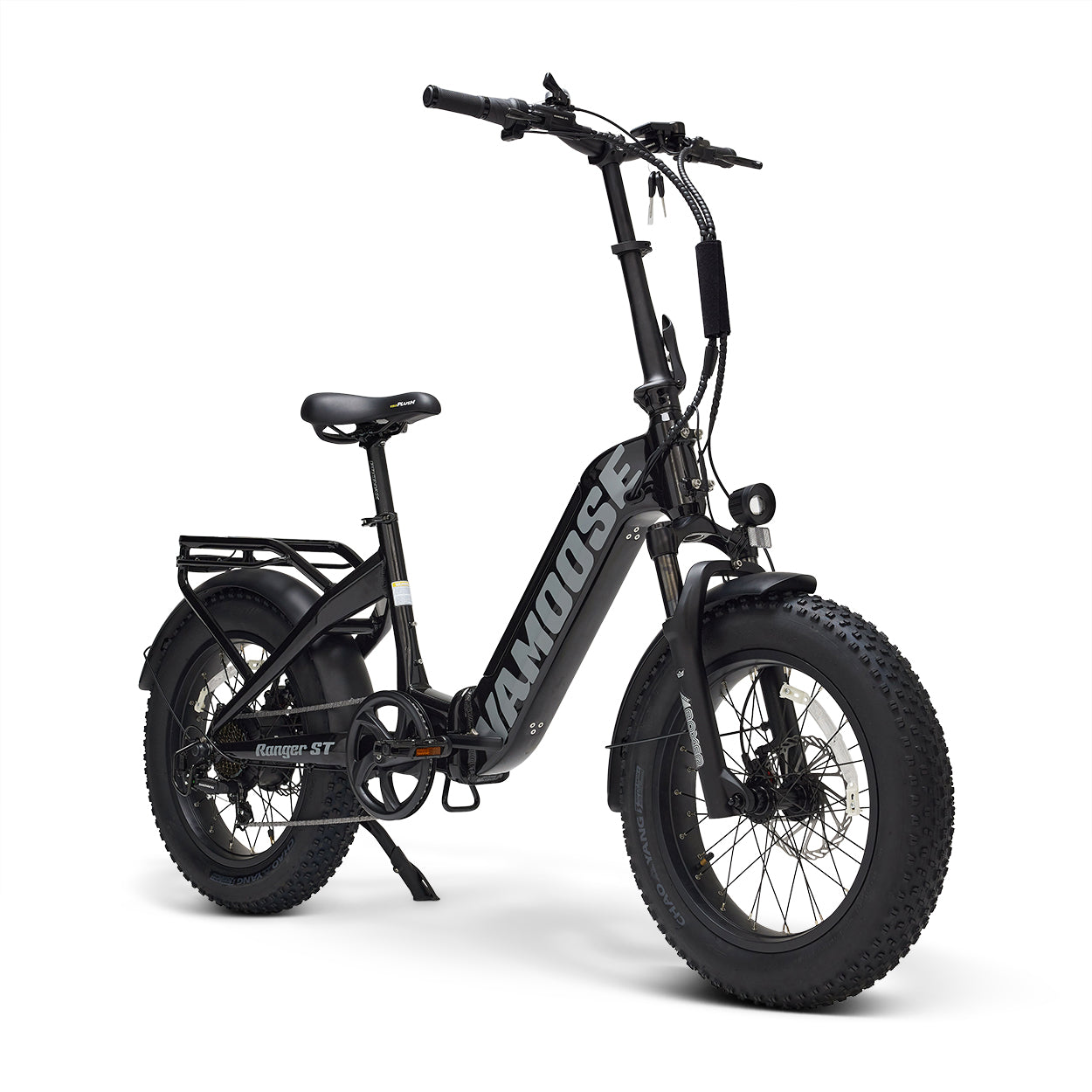

Name: Ranger X ST
Brand: Vamoose Electric Cycle Ltd.
SKU: VM01RGR10216-BBG
Price: 2499.0 CAD
Availability: OutOfStock

$2,499.00

Product Colour

Brilliant Black and Gunmetal Grey

Brilliant White and Mojave Desert

Matte Burnt Chili Pepper

Prussian Blue and Aegean Blue

Tangerine and Grey

The Vamoose Ranger ST front suspension folding fat tire cycle is a fantastic machine for folks looking for a low step-through cycle that can also be folded to fit in a car or small space for storage or transport.

RANGER ST - FRONT SUSPENSION FOLDER

The Vamoose Ranger ST is a 500W rear hub-driven, front suspension, folding cycle that will take you where you want to go and won't be troublesome when you need to take it somewhere. With small folding dimensions, this folding fat tire cycle will fit in a vehicle or small space for storage or transport.

This cycle comes standard with the following adders:

• 48V 500W Rear Hub Motor

• 48V 15 Ah Samsung Battery

• KD686 LCD panel

• Cadence sensor

• Front and rear LED lights

• Front and rear fenders

SPECIFICATIONS

SPECIFICATIONS

Motor Format:	Single Rear
Front Motor:	N/A
Mid Motor:	N/A
Rear Motor:	BAFANG 48V 500W
Derailleur and shifters:	SHIMANO Tourny 7 speed
Throttle:	Throttle w shut off
Display:	KD686
Battery:	48V 15 Ah Samsung
Charger:	2A
Front forks :	VAMOOSE BOXER
Rear Suspension:	n/a
Dropper Seat Post:
Frame:	6061 Aluminum
Brakes:	Tektro hydraulic disc brake, WUXING brake lever with bell
Wheels:	20" x 4" Choayang
Pedals:	Wellgo
Saddle:	Velo Black
Front and Rear Racks:	Rear, with front mount option
Fenders:	Plastic
Front and rear lights:	LED Wired

ADDITIONAL ATTRIBUTES

Torque (per motor):	80 Nm MAX Torque
Watt Hours:	720
Miles per charge:	52
Kms per charge:	83.68568
Battery charge time:	4-6 hrs.
USB Plugin:	YES

WEIGHTS AND DIMENSIONS

Box dimensions (cm):	148 x 30 x 71
Box dimensions (inch):	58 x 12 x 28
Weights (metric):	33kgs NW / 41kgs GW
Weights (imperial):	73lbs NW / 90lbs GW
Max Speed (metric):	32 km/h max speed
Max Speed (imperial):	20 m/h max speed
Max Load:	300 lbs.

OPTIONAL

Vamoose sells across North America, and primarily through distribution. Please see our DISTRIBUTORS link on the header to find a distributor near you.

If there is not a local dealer in your area we would be happy to ship products to you. We use a range of carriers and freight companies depending on the size of the product.
